About This

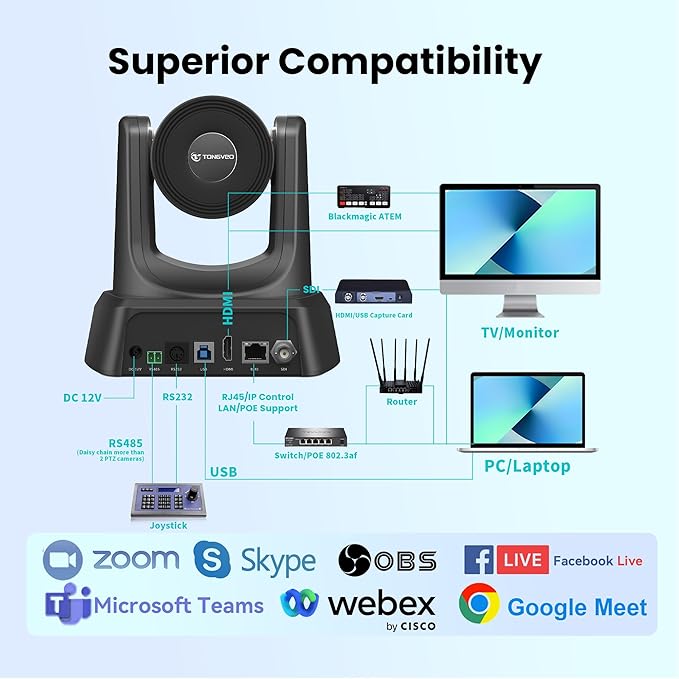

• ✔HDMI + SDI + IP + USB3.0 Outputs - This TONGVEO PTZ Camera has HDMI, SDI, IP and USB3.0 outputs which can output video simultaneously. JR45 supports POE IEEE802.3a powered and IP control. The Plug & Play HDMI and USB3.0 ports are available to connect to TV/monitor. The SDI port (need a converter) supports remote video transmission up to 328ft/100m. Video Compression Format: YUV, MJPEG, H.264 and H.265, makes church live or video conference more fluent and clear. Note: NO buit-in mic.

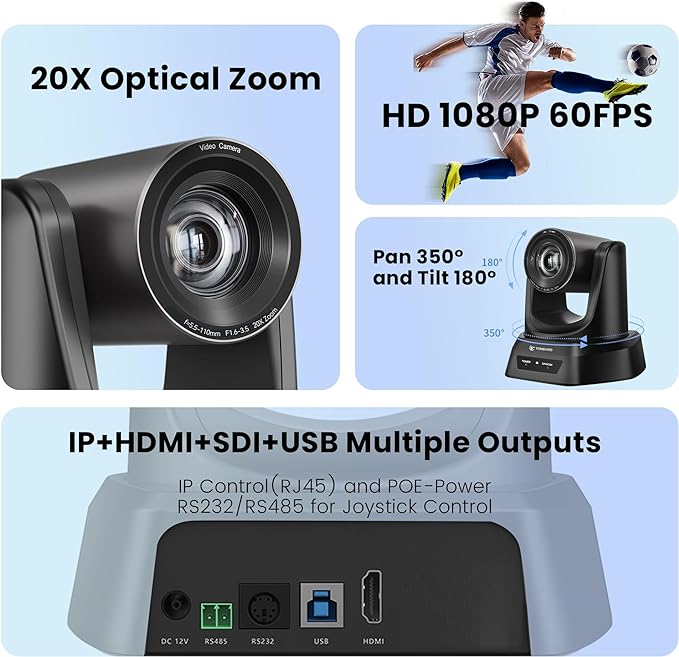

• ✔1080P 60fps 20X Optical Zoom - It is equipped with a IMX327 1/2.8" CMOS with 2.07MP, Full HD 1080p output resolution and high dynamic image of 60fps. The superior 20x optical zoom lens has a wide angle FOV of 61°(W)-3.64°(T) without distortion, which has excellent white balance and exposure mode. The menu of the remote control can set picture parameters. Recommended for a Medium to Large church or meeting room.

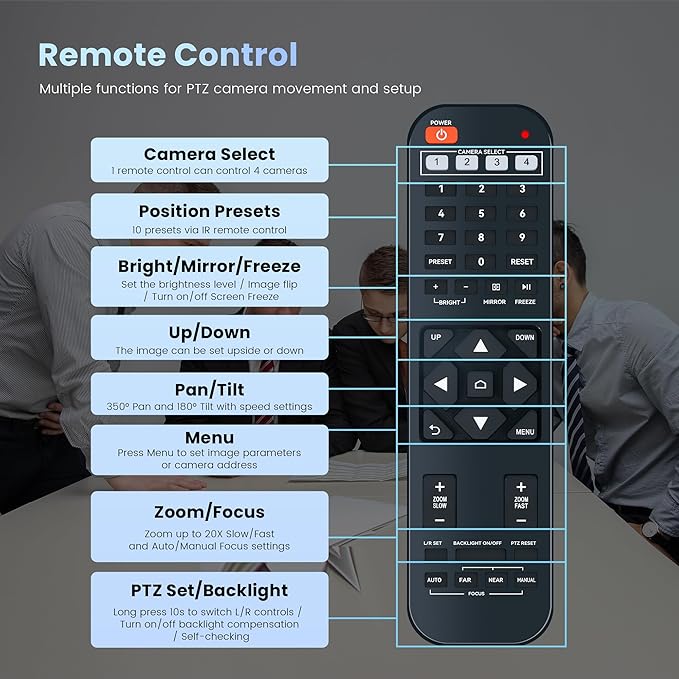

• ✔Smooth and Quiet PTZ movement - The PTZ camera can rotate 350° horizontally (±175°) and 90° vertically (-35°～+55°). It can move into preset positions (10 presets via IR remote control, 255 via PELCO, 64 via VISCA) for a close-up sequence. One remote can control 4 PTZ cameras. And the ptz camera has RS232 and RS485 interfaces which support joystick control.(If controlling two or more PTZ cameras, please use RS485.)
• ✔Multi-compatibility and various Use occasions - Works with most video conferencing and live streaming software such as Zoom, Skype, OBS, Facebook Live, WebEx, polycom, Microsoft Lync and BlueJeans, etc. Supports Windows 7, Windows 8.1, Windows 10, Windows 11, Mac OS 10.10 and higher. Suitable for Church, House of worship, Education, Teaching Broadcast, Conference, Esports, Events etc.
• ✔Multiple installation options & Package list - Available to install on the desk, wall, monitor, tripod, or ceiling. Package includes 1 * PTZ Camera, 1 * IR remote control, 1 * 9.8ft USB 3.0 cable, 1 * DC 12V/2A power adaptor, 1 * wall bracket with screws and 1 * manual.
• ✔Note: If you want to use IP control, we recommend directly entering the camera's IP address in your browser for VISCA serial protocol control. Currently, some camera functions are limited when controlled through VISCA TCP or VISCA UDP protocols. If used with Bitfocus/Companion, the preset settings function will be limited. Our technical team will continue to release firmware upgrades. If you encounter any network control issues, please do not hesitate to contact us for assistance. Thank you very much for choosing TONGVEO.

Overview

• Brand : TONGVEO
• Photo Sensor Technology : IMX327 CMOS
• Video Capture Resolution : 1080p
• Maximum Focal Length : 110 Millimeters
• Maximum Aperture : 3.5 f
• Flash Memory Type : SD
• Video Capture Format : MP4
• Screen Size : 2.8 Inches
• Connectivity Technology : RJ45(IP), HDMI, SDI, USB 3.0
• Color : Black
